Geotechnical laboratory testing in Ottawa forms the backbone of responsible site investigation, providing the quantitative data engineers and developers need to design safe, durable, and compliant structures. This category encompasses the entire suite of standardized physical and mechanical tests performed on soil and rock samples recovered from boreholes, test pits, and surface exposures. In Ottawa, where subsurface conditions can vary dramatically over short distances, laboratory analysis transforms raw field observations into reliable engineering parameters. From simple classification to advanced strength and consolidation testing, the laboratory bridges the gap between field sampling and final design, ensuring that ground-related risks are identified and managed before construction begins.
Ottawa’s geological setting makes rigorous laboratory testing particularly important. Much of the urban area is underlain by the Champlain Sea clay, a sensitive marine deposit that can lose significant strength when disturbed or exposed to moisture changes. This Leda clay, as it is often known, poses unique challenges including potential retrogressive landslides and high compressibility. Glacial till, fluvial sands, and limestone bedrock also appear across the region, each requiring different testing approaches. A proper laboratory program, including Atterberg limits testing, helps distinguish these fine-grained soils and quantify their plasticity characteristics, which directly influence slope stability and settlement predictions. Without this local geological understanding, laboratory results cannot be properly interpreted or applied.

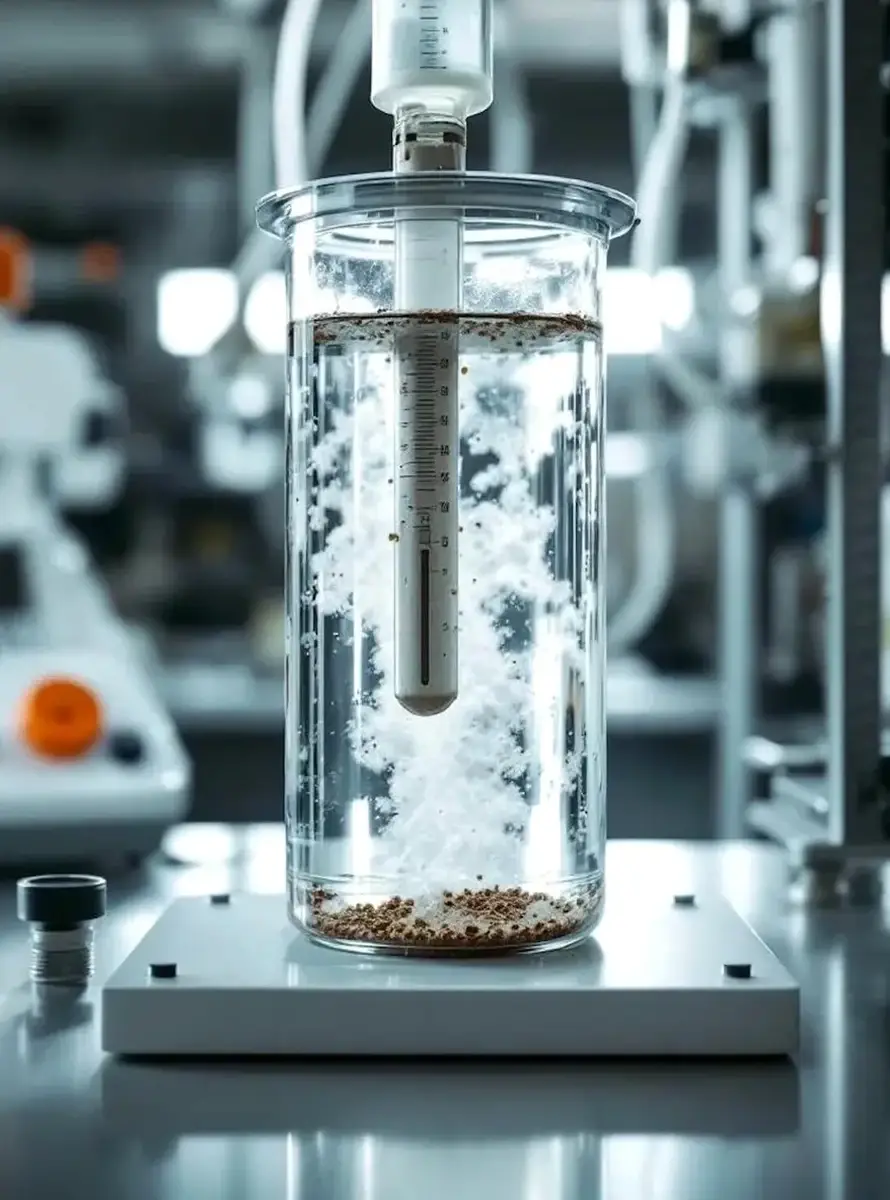

Laboratory testing in Ottawa must align with Canadian standards, primarily those published by the Canadian Standards Association (CSA) and the Bureau de normalisation du Québec (BNQ), which are harmonized with ASTM International methods. CSA A23 series and provincial guidelines under the Ontario Building Code reference specific test procedures for soils and aggregates used in foundations, roads, and earthworks. The Ontario Ministry of Transportation (MTO) also maintains its own laboratory testing manual (LS-600 series) for transportation infrastructure projects. For grain size distribution, a fundamental test required on virtually every project, grain size analysis (sieve + hydrometer) must follow ASTM D6913 and D7928 or equivalent CSA procedures. Adherence to these standards ensures that results are legally defensible, comparable across projects, and accepted by regulatory authorities including conservation authorities and the City of Ottawa.
The types of projects that demand comprehensive laboratory testing in Ottawa are diverse. Residential subdivisions on Champlain Sea clay require consolidation testing to estimate settlement under building loads and to design preloading or surcharge programs. Commercial high-rise developments in the downtown core rely on triaxial and direct shear tests to determine bearing capacity and lateral earth pressures for deep excavations. Infrastructure corridors, including light rail expansions and highway widenings, depend on compaction testing and California Bearing Ratio (CBR) values to specify fill materials and pavement thicknesses. Even smaller-scale projects like retaining walls or basement underpinning benefit from basic classification tests such as Atterberg limits and moisture content determination to confirm soil behavior assumptions. Environmental site assessments may also integrate geotechnical lab work when characterizing contaminated soils for disposal or reuse.
A typical program includes index property tests for soil classification, such as moisture content, grain size analysis, and Atterberg limits, along with engineering property tests like consolidation, triaxial shear, and compaction. The specific suite depends on project requirements, soil types encountered, and the design parameters needed. A qualified geotechnical engineer selects tests based on the ground conditions and structural loading anticipated.
Field tests like SPT or CPT provide continuous profiles and in-situ behavior, but they cannot directly measure fundamental properties such as shear strength parameters, compressibility, or plasticity. Laboratory testing on undisturbed samples provides these critical design values under controlled conditions. The two approaches are complementary; field tests guide sampling depth and frequency, while lab results calibrate and validate the field data.
Sensitive Champlain Sea clay samples require thin-walled Shelby tubes, immediate sealing with wax or plastic caps, and refrigerated transport to minimize moisture loss and disturbance. ASTM D4220 outlines procedures for handling and storage. For these clays, even minor disturbance can reduce undrained shear strength results, so laboratories must process samples promptly and follow strict specimen preparation protocols to preserve their natural structure.
Ontario projects primarily reference CSA standards, which are often technically equivalent to ASTM methods, along with MTO laboratory testing manuals for transportation work. The Ontario Building Code requires testing to recognized standards for foundation design. Common references include CSA A23.2 for concrete aggregates, ASTM D4318 for Atterberg limits, and ASTM D6913/D7928 for grain size distribution. Specific project specifications may also invoke BNQ or AASHTO standards.
