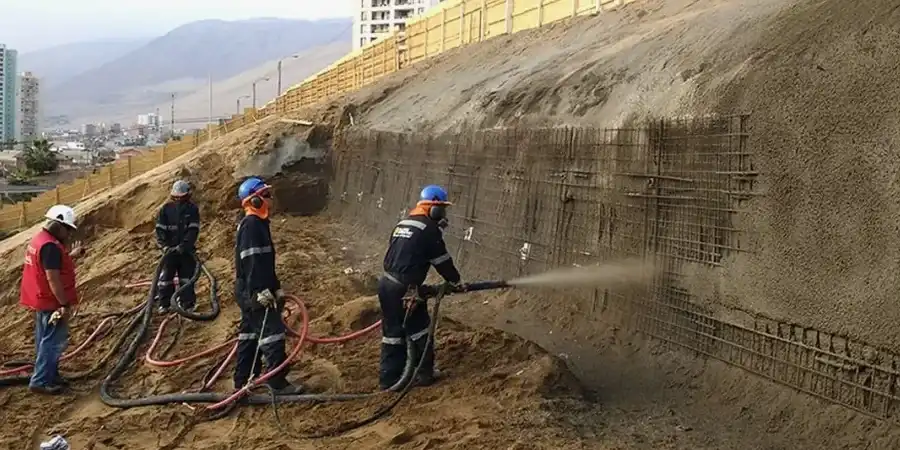

Slope Stability Analysis in Ottawa: Geotechnical Risk on Leda Clay

Ottawa sits at roughly 70 meters above sea level, but the subsurface tells a more complicated story. The city rests on a mix of glacial till and the infamous Leda clay, a sensitive marine deposit that has triggered retrogressive landslides in the region. When you cut into a slope along the Rideau River or plan an embankment in Kanata, the safety factor is not a guess—it is a calculation backed by effective stress parameters. A triaxial test program gives us the drained and undrained shear strength we need to model failure surfaces accurately, while grain-size analysis confirms whether the matrix is truly a sensitive silt-clay or something more stable. Every project in the Ottawa Valley has to account for the Champlain Sea deposits; ignoring them is a gamble no engineer will take.

A stability number under 0.15 in Leda clay means you are managing a potential retrogressive landslide, not just a surface slough.

Our service areas

Scope of work

The National Building Code of Canada (NBCC 2020) and CAN/CSA-A23.3 frame the design requirements, but for slope work, the real authority is the limit equilibrium method. We run Spencer and Morgenstern-Price analyses because Bishop simplified does not handle the inter-slice forces we see in anisotropic Leda clay. A slope stability analysis here is not just a routine check—it is the primary design input. We pair the geotechnical model with piles when a slope fails the static factor of safety and a retaining wall is not enough, or with stone-columns to increase shear strength in the lower bench and control deep-seated failure circles. Our lab runs consolidated-undrained triaxial with pore pressure measurement to get the phi-prime and c-prime values, which are far more reliable than correlations from SPT blow counts alone. For embankments over soft ground, we also check consolidation settlement and pore pressure dissipation, because a stable slope can still fail if excess pore pressure builds up after a wet spring.

Slope Stability Analysis in Ottawa: Geotechnical Risk on Leda Clay — Technical reference — Ottawa

Area-specific notes

A developer excavated a three-story basement in a redevelopment site near the Ottawa River and hit a sand lens at 6 meters. The cut slope held for two days, then a section the size of a delivery truck slid, taking out a section of the shoring and flooding the excavation with groundwater. The original geotechnical report had not included a slope stability analysis for the temporary cut, assuming the shoring alone would be enough. The sand lens had been missed by a sparse drilling program, and the pore pressure in the silt layer behind it had not been measured. The remedial design cost the project six weeks and a mid-five-figure change order. The lesson is simple: a stability analysis is not a desk study. It needs representative shear strength data, a groundwater model, and a sensitivity check on the stratigraphy. When we encounter a site with a similar profile, we run the analysis for the as-built cut geometry and adjust the construction sequence.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.vip

Standards used

NBCC 2020 – National Building Code of Canada, CAN/CSA-A23.3 – Design of Concrete Structures, ASTM D7181 – Consolidated Undrained Triaxial Compression Test, ASTM D6913 – Particle-Size Distribution (Grain Size), FHWA-NHI-05-094 – Slope Stability Reference Guide

Technical data

Parameter	Typical value
Analysis Method	Spencer, Morgenstern-Price, Bishop (LEM)
Shear Strength Input	Effective stress (c', phi') from CIU triaxial
Target Static FoS	1.5 (permanent cut), 1.3 (temporary excavation)
Seismic Coefficient (kh)	Per NBCC 2020 seismic hazard for Ottawa
Soil Model	Mohr-Coulomb, SHANSEP for sensitive clays
Critical Slip Surface	Grid search with circular and block failure
Pore Pressure Condition	Steady-state seepage or rapid drawdown
Reporting Standard	Geotechnical baseline report with FoS contours

Common questions

How much does a slope stability analysis cost for a typical residential lot in Ottawa?

For a standard residential slope assessment on a single lot, the geotechnical investigation and analysis typically runs from CA$1,790 to CA$5,260, depending on the number of boreholes, lab tests required, and the complexity of the slope geometry. A site with Leda clay and a high groundwater table will be at the upper end because we need triaxial testing and a detailed seepage model.

What is the minimum factor of safety for a permanent slope in Ottawa?

We follow the NBCC and standard geotechnical practice: a minimum factor of safety of 1.5 for permanent cuts and embankments under static conditions, and 1.1 to 1.3 for the seismic case, depending on the consequence of failure. For temporary construction slopes, a FoS of 1.3 is generally acceptable.

Can you run the analysis on a slope that has already started moving?

Yes. In that case we work backwards from the observed failure geometry to calibrate the shear strength parameters—a back-analysis. It gives us the most reliable parameters for designing the repair. We install slope inclinometers or survey prisms first to track the movement rate and depth of the shear plane.

Do you need a drilling rig on site, or can you use existing borehole logs?

We can use existing logs if they are recent and include the required lab testing, but for a slope stability analysis we almost always recommend at least one new borehole with thin-walled Shelby tube sampling. Disturbed samples from an old auger hole will not give us reliable effective stress strength parameters for the Leda clay.
