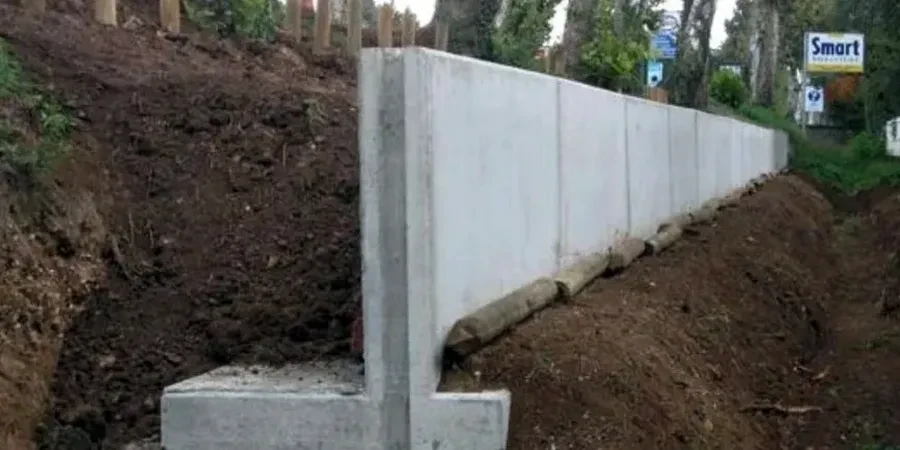

Ottawa’s landscape—shaped by the ancient Champlain Sea—leaves a challenging legacy for anyone building a retaining wall. The marine clays common across the city, particularly the sensitive Leda clay, can lose significant strength when disturbed, while the 130-plus freeze-thaw cycles each year add another layer of complexity to long-term wall performance. We have worked on sites from Kanata to Orléans where the difference between a standard design and one adapted to local subgrade conditions determines whether a wall stays plumb for a decade or starts tilting after three winters. A retaining wall here isn’t just a structural element; it’s a system that must manage groundwater seepage, seasonal swelling pressures, and occasional seismic demands under the National Building Code of Canada. When backfill drainage is overlooked or the bearing layer misidentified, repair costs climb fast. Our approach integrates slope stability analysis early in the design phase to confirm that both the retained soil mass and the wall foundation remain stable under saturated spring conditions.

In Ottawa’s sensitive clay, a retaining wall without an effective drainage system becomes a dam—and most walls aren’t built to hold back water.

Our service areas

Scope of work

We recently reviewed a 4.2-meter excavation support for a low-rise condo on a sloping lot near the Rideau River. The developer had assumed a dense till foundation, but our field investigation revealed a lens of soft silty clay at 2.8 meters depth. That single discovery changed the entire design—switching from a simple cantilever wall to an anchored soldier pile system with a structural facing. It’s the kind of scenario we see often in Ottawa’s older neighborhoods, where fill layers overlie natural deposits in unpredictable sequences.

Proper retaining wall design in this region demands attention to several physical conditions: the depth to bedrock, which can vary from less than a meter in parts of Kanata to over 25 meters in the east end; the sensitivity of the clay, which dictates how much movement the wall can tolerate before the soil structure collapses; and the groundwater regime, which typically peaks in April and can double the lateral pressure on a wall if not drained correctly. We specify filter-appropriate backfill, install weep holes or continuous drainage boards, and verify compaction with nuclear density testing to avoid the buildup of hydrostatic forces that cause most wall failures in Eastern Ontario.

Retaining Wall Design in Ottawa: Geotechnical Solutions for Leda Clay and Glacial Soils — Technical reference — Ottawa

Area-specific notes

The risk profile for a retaining wall changes dramatically depending on which side of the Greenbelt you’re building on. West of downtown, in areas like Nepean and Barrhaven, we often encounter dense glacial till over limestone bedrock—conditions that favor shallow foundations and relatively stiff wall behavior. East of the Rideau Canal, particularly in the Orléans corridor, the Champlain Sea clay thickens and sensitivity increases, raising the stakes for any excavation deeper than 1.5 meters. A wall that performs well in Barrhaven’s till might experience excessive rotation in Orléans if the designer didn’t account for the lower undrained shear strength of the native clay.

Beyond soil variability, Ottawa’s freeze-thaw cycles impose a risk that isn’t always obvious on the drawings. Frost heave can lift a footing unevenly, while thawing in March softens the bearing stratum just as lateral earth pressures rise from saturated backfill. We address this by extending footings below the 1.8-meter frost line and specifying non-frost-susceptible backfill within the active zone. For taller walls—those exceeding 3 meters—we recommend instrumentation monitoring during the first winter to catch any movement before it becomes structural.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.vip

Watch how it works

Standards used

NBCC 2020, Division B, Part 4 (Structural Design), CSA A23.3:19 (Design of Concrete Structures), CAN/CSA-S6:19 (Canadian Highway Bridge Design Code – retaining structures), CFEM (Canadian Foundation Engineering Manual, 4th Edition), ASTM D698 / D1557 (Compaction testing of backfill materials)

Technical data

Parameter	Typical value
Typical retaining wall heights (residential)	1.2 m to 4.5 m
Design reference life under NBCC	50 years (Importance Category Normal)
Surcharge load (vehicle, standard)	12 kPa per CAN/CSA-S6
Backfill type, free-draining	Granular A, φ’ ≥ 34°, <5% passing 75 µm
Seasonal high groundwater	0.5 m to 1.8 m below grade
Seismic coefficient, Ottawa region	PGA 0.15–0.25g (Site Class D/E)
Frost penetration depth	1.8 m (Ottawa design standard)
Clay sensitivity (St), Leda clay	10 to >50 (quick clay potential)

Common questions

What’s the typical cost range for a retaining wall design in Ottawa?

For a residential or light commercial retaining wall in Ottawa, the engineering design fee typically falls between CA$1,220 and CA$4,980, depending on wall height, complexity, and the number of site visits required. A simple 1.5-meter segmental block wall at a single-family home sits at the lower end, while a 4-meter anchored wall with surcharge loading and instrumentation monitoring moves toward the upper end. This covers the geotechnical assessment, structural calculations, stamped drawings for the building permit, and construction review.

How deep should a retaining wall footing be in Ottawa to avoid frost damage?

Ottawa’s design frost depth is 1.8 meters below finished grade, and all retaining wall footings must extend at least that deep unless founded on bedrock. We often specify a footing base at 2.0 meters where clay soils are present, because the upper 200 mm of clay can still experience seasonal moisture fluctuations that reduce bearing capacity. For gravity walls, the bottom of the leveling pad must also sit below frost depth, and we recommend using non-frost-susceptible granular fill (less than 6 percent passing the 75-micron sieve) in the backfill zone to minimize heave forces against the wall stem.

Does the City of Ottawa require an engineered design for retaining walls under 1 meter?

Under the Ontario Building Code and City of Ottawa by-laws, retaining walls less than 1.0 meter in height generally do not require a building permit or an engineered design, provided they are not supporting a surcharge such as a driveway or adjacent structure. However, we strongly caution against self-building any wall over 0.6 meters on Leda clay without at least a geotechnical review—small walls on sensitive clay have failed due to poor drainage and freeze-thaw action, and the repair cost far exceeds the initial design fee.
